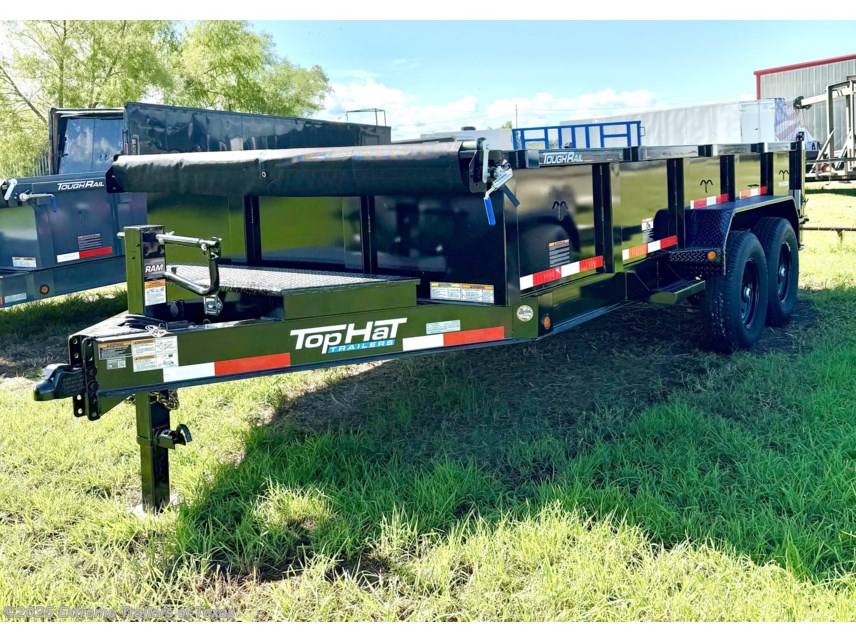

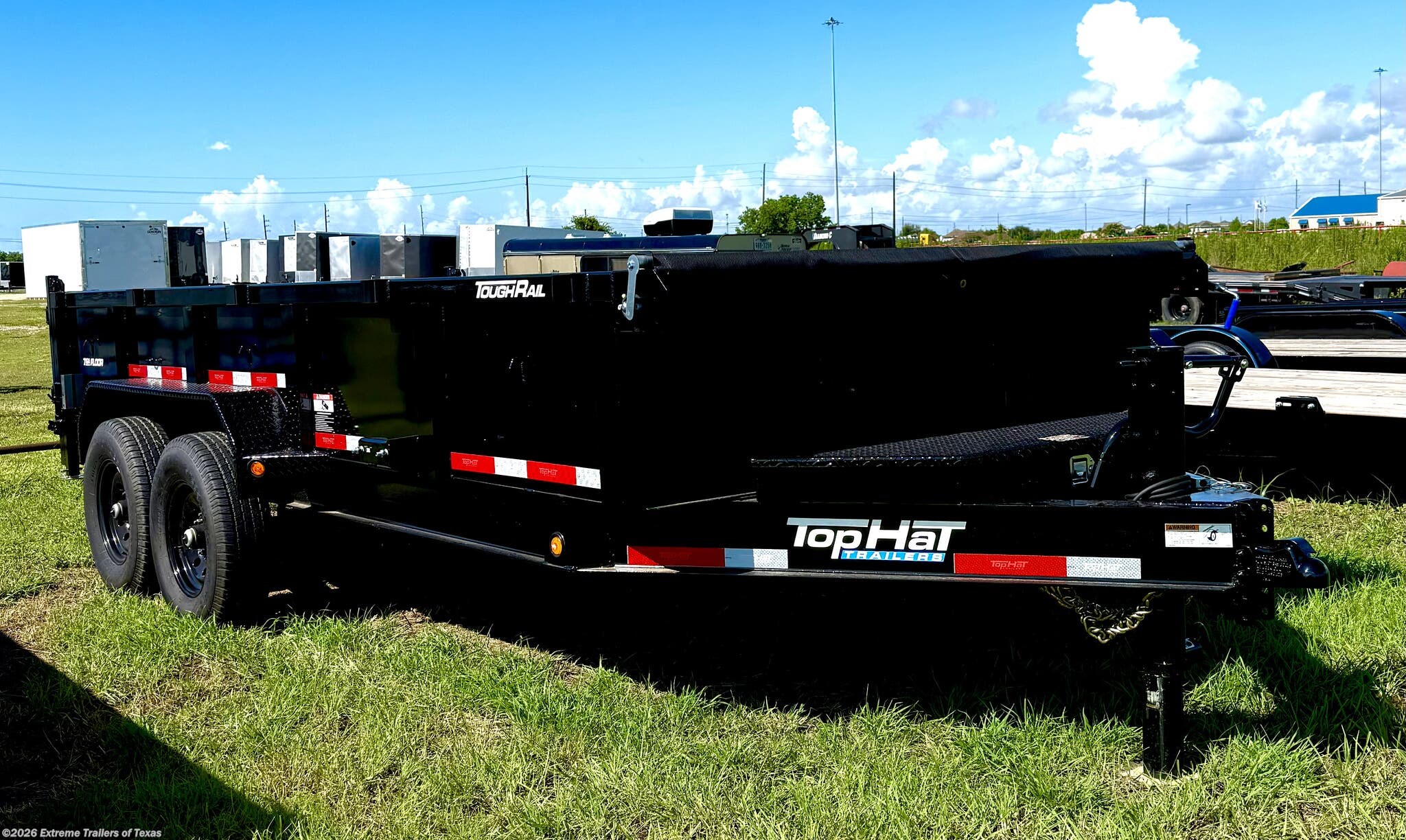

New 2025 Top Hat Dump 16X83

2025 Top Hat Dump Trailer DPX140-16X83

Standard Equipment

• Coupler: 2 5/16" Forged Adjustable 5/Position
• Coupler: 2 5/16" Round Adjustable on GN
• Jack: 10000# Drop Leg
• Jack: Dual 10000# Drop Leg on GN
• Fenders: HD Diamond Plate Straight
• Floor: 7 GA Sheet Metal
• Width: 83" Inside Box
• Brake: Electric All Wheel
• Break Away Unit w/Charger
• DOT Reflective Tape
• Primed & Painted Underside

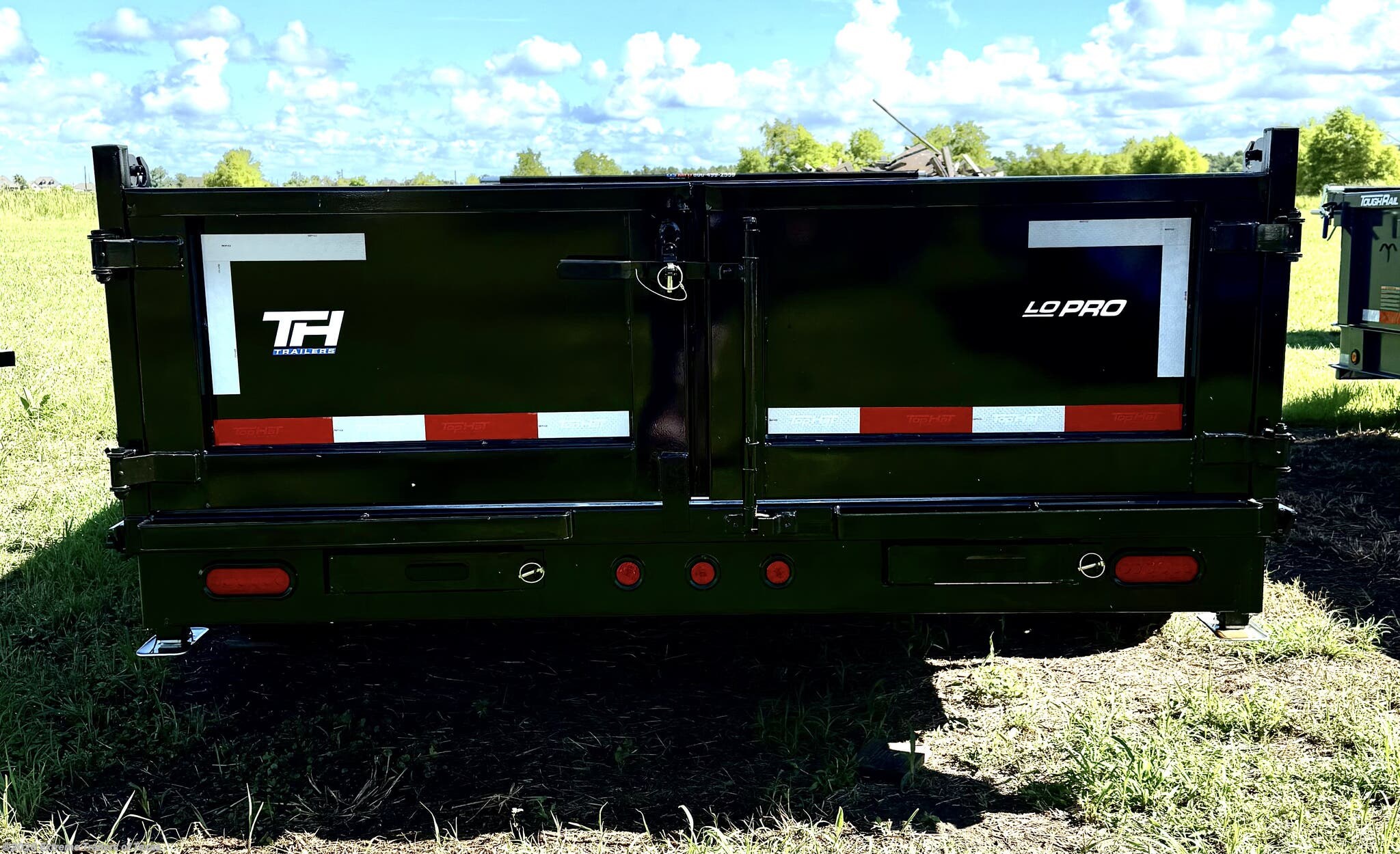

• Doors: Double Action (Dual Swing Out/Spreader Gate. NA w/High Sides.)
• Ramp Pockets w/6' Ramps
• 5/8" D-Rings in Box (4)
• Spare Rack
• Sealed Flush Mount LED Lights
• Wiring Harness
• Lockable Battery/Pump Box
• Deep Cycle 12V Marine Battery w/110V-5 Amp Charger
• Tarp (Includes Installation)

Frame Structure

• Frame & Tongue: 8" I-Beam Integrated
• Neck & Risers: (GN Model) 10" I-Beam
• Sides: 24" Tall 10 GA Sheet Metal w/Toprail
• Toprail: Rigid 3x2x7 GA Rectangular Tubing
• Uprights: 24" OC
• Crossmembers: 3" Channel 16" OC
• Tarp Bracket & Tie Downs
• Loading Height 4" Lower than DP Model

• Dump Components
• Hoist: Scissor Lift
• Power Up/Power Down
• Control: Pistol Grip w/10' Cord
• Safety Prop
• Caulked Seams on Dump Body
